Flush mount and water proof

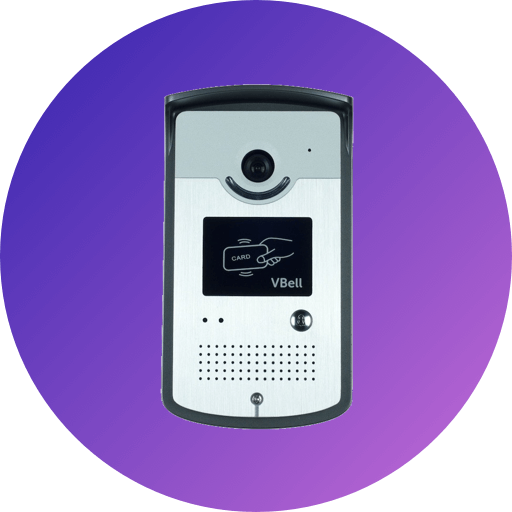

DP-201 SIP IP door phone with flush mount and water proof, run on the Internet and provide more services for access control system, is coming soon. It can be combined with IP Phone as a tool to open the door. It can also be combined with a smartphone (supported both iOS and Android system) as a tool to open the door. Let users no longer limited by time and place. No matter where you are, can talk with visitors who at your door and remote open the door for visitors.

The DP-201 outdoor SIP IP video door phone adopts VoIP SIP protocol, and supports SIP register mode and peer to peer mode. It can work with most modern IP-PBX such as Asterisk…etc. It also allows users make a call by inputting the IP address of the call receiver directly. No IP-PBX is needed, which saves the cost for the system implementation.

The key features of DP-201 are described as follows:

  • COMS 1280 x 720 HD Camera Sensor
  • Lens : 112 degrees Wide Range Video View angle
  • Support H.264 , Motion-JPEG Video codec
  • Support VoIP SIP (FRC3261) protocol
  • Support RTSP Protocol
  • Support ONVIF Protocol
  • Support HTTP Protocol for MJPEG Video stream
  • Build-in one Call Button
  • Biild-in One Relay output ( control door lock or Lighting )
  • Build-in One DI port ( for Door sensor, PIR, Emergency button )
  • Build-in Hardware AEC ( Acoustic Echo Cancellation )
  • Supports SIP Registed mode and P2P mode
  • Supports Auto-answer
  • Supports Video record Function
  • Build-in RFID MiFare Card Reader (optional DP-104R)
  • Store 3000 RFID ID card data.
  • Flush mount install
  • Water proof Lavel: IP54



  • Door Entry Video Intercom with RFID.
  • Access Control
  • Emergency Video Intercom.
